Description

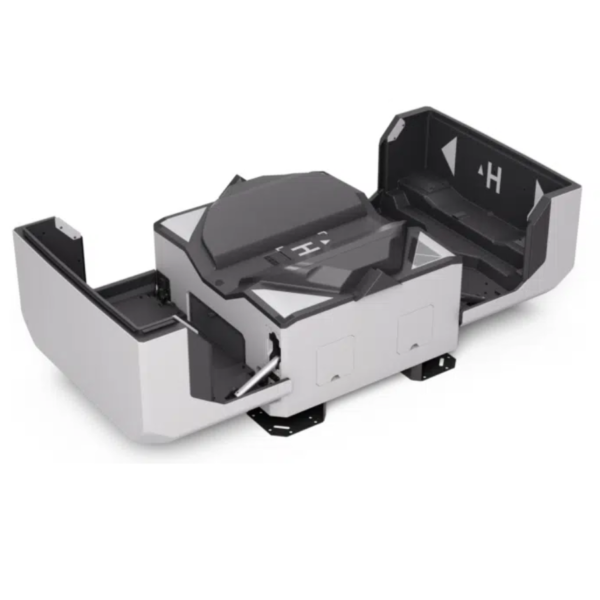

The DJI Dock 2 marks a significant step forward in drone infrastructure, featuring enhanced portability, efficiency, and performance. With a design that is 75% smaller and 68% lighter than its predecessor, the Dock 2 is easy to transport and install, making it an excellent choice for various industries and environments. Specifically tailored to support DJI’s Matrice 3D and 3TD drones, it facilitates streamlined aerial missions with quick deployment, improved landing accuracy, and rapid charging. This innovative dock is perfect for integrating with advanced drone cameras, ensuring high-quality imaging and reliable performance in the field.
| Key Feature | Details |
|---|---|
| Compact and Simple Setup | The DJI Dock 2 can be set up by just two people, cutting down on installation time and costs. |
| Rapid Site Deployment | Equipped with vision sensors and GNSS signal detection, the Dock 2 can assess deployment sites in just 12 minutes, much faster than earlier models. |
| Durable and Weatherproof | With an IP55 rating, the Dock 2 is designed to endure tough conditions such as dust and rain, ensuring long-lasting reliability across different environments. |
| Environmental Monitoring | Featuring sensors for real-time weather updates, the Dock 2 enhances flight safety by automatically responding to changing conditions. |
| Quick Charging and Takeoff | Charges drones from 20% to 90% in just 32 minutes, and with dual RTK antennas, the drone can be ready for takeoff in 45 seconds. |
| Backup Power and Low Maintenance | The DJI Dock 2 features a built-in backup battery that allows operations to continue for over five hours during power outages, requiring maintenance only every six months. |
| Comprehensive Monitoring | Dual fisheye cameras offer real-time oversight of the dock’s surroundings and the drone’s takeoff and landing, ensuring safe and efficient operations. |
| Ideal for Precision, Reliability, and Efficiency | The DJI Dock 2 is the ideal solution for industries prioritizing precision, reliability, and efficiency in drone operations, such as mapping, inspections, or security tasks. |
| Specification | Details |
|---|---|
| Product Name | DJI Dock 2 |
| Weight | 34 kg (excluding aircraft) |
| Dimensions | With Cover Open: 1228×583×412 mm (L×W×H) With Cover Closed: 570×583×465 mm (L×W×H) |
| Input Voltage | 100-240 V (AC), 50/60 Hz |
| Power Consumption | Up to 1000 W |
| Operating Temperature Range | -25° to 45° C (-13° to 113° F) |
| Ingress Protection Rating | IP55 |
| Drone Capacity | 1 |
| Max Wind Speed for Landing | 8 m/s |
| Maximum Operating Altitude | 4000 m |
| RTK Base Station Frequencies Supported | GPS: L1 C/A, L2 BeiDou2: B1l, B2l, B3l BeiDou3: B1l, B3l GLONASS: L1, L2 Galileo: E1, E5B |
| RTK Positioning Accuracy | Horizontal: 1 cm + 1 ppm (RMS) Vertical: 2 cm + 1 ppm (RMS) |
| Charging Specifications | Output Voltage: 28 V DC Charge Time: 32 minutes (from 20% to 90% at 25°C/77°F) |
| Video Transmission | Transmission System: O3 Enterprise Frequencies: 2.4000-2.4835 GHz, 5.725-5.850 GHz Antennas: Four internal, 2T4R, with intelligent switching |
| Air Conditioning System | Voltage: 28 V DC Type: TEC Air Conditioning |
| Backup Battery | Capacity: 12 Ah Voltage: 12 V Type: Lead-acid |
| Network | Supports 10/100/1000 Mbps Ethernet connections |
| Sensors Included | Wind speed, rainfall, ambient temperature, water immersion, in-cabin temperature, in-cabin humidity sensors Security cameras |
| Camera Systems | External Camera: Resolution: 1920×1080, FOV: 151°, Auxiliary Lighting: White light Internal Camera: Resolution: 1920×1080, FOV: 151°, Auxiliary Lighting: White light |
| Lightning Protection | AC Power Port: Rated for 20 kA, meets EN 61643-11 Type 2 and IEC 61643-1 Class II standards Ethernet Port: Rated for 10 kA, compliant with EN/IEC 61643-21 Category C |
| Expansion | Open Protocol: DJI Cloud API Edge Computing: Can communicate with external switches |
| Drone Specifications | Weight: 1410 g (includes battery, propellers, and microSD card) Maximum Takeoff Weight: 1610 g Dimensions: 335×398×153 mm (without propellers) Wheelbase: 463.2 mm (diagonal), 359.9 mm (left-right), 291.4 mm (front-rear) |
| Ascent Speed | 6 m/s (Normal), 8 m/s (Sport) |
| Descent Speed | 6 m/s (both modes) |
| Max Horizontal Speed (at sea level, no wind) | Normal Mode: 15 m/s forward, 12 m/s backward, 10 m/s sideways Sport Mode: 21 m/s forward, 18 m/s backward, 16 m/s sideways |
| Wind Resistance | During Operation: 12 m/s During Takeoff/Landing: 8 m/s |
| Max Takeoff Altitude | 4000 m |
| Max Flight Time | 50 minutes (conditions apply) |
| Hovering Time | 40 minutes (windless conditions) |
| Operating Radius | 10 km (conditions apply) |
| Max Flight Distance | 43 km (conditions apply) |
| Max Pitch Angle | 25° (both modes) |
| Angular Velocity | 250°/s |
| Navigation | GPS, Galileo, BeiDou, GLONASS (with RTK enabled) |
| Hovering Accuracy (in calm conditions) | Vertical: ±0.1 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK) Horizontal: ±0.3 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK) |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Ingress Protection Rating | IP54 |
| Motor Model | 2607 |
| Propellers | 1149, foldable (non-quick release) |
| RTK Module & Beacon | Integrated |
| Camera Systems | Wide-Angle Camera: DJI Matrice 3D: 4/3 CMOS, 20 MP DJI Matrice 3TD: 1/1.32-inch CMOS, 48 MP FOV: 84° (Matrice 3D), 82° (Matrice 3TD) Aperture: f/2.8–f/11 (Matrice 3D), f/1.7 (Matrice 3TD) Focus: 1 m to ∞ Lens Defogging: Available on both ISO Range: Matrice 3D: 100–6400, Matrice 3TD: 100–25600 Shutter Speed: Matrice 3D: Electronic 8-1/8000 s, Mechanical 8-1/2000 s, Matrice 3TD: Electronic 8-1/8000 s Max Image Size: Matrice 3D: 5280×3956, Matrice 3TD: 8064×6048 Video Formats: H.264 with 4K and FHD options, MP4 (MPEG-4 AVC/H.264) |
| Tele Camera | Image Sensor: 1/2-inch CMOS, 12 MP FOV: 15° Aperture: f/4.4 Focus: 3 m to ∞ ISO Range: Matrice 3D: 100–6400, Matrice 3TD: 100–25600 Shutter Speed: Electronic 8–1/8000 s Max Image Size: 4008×3000 |
