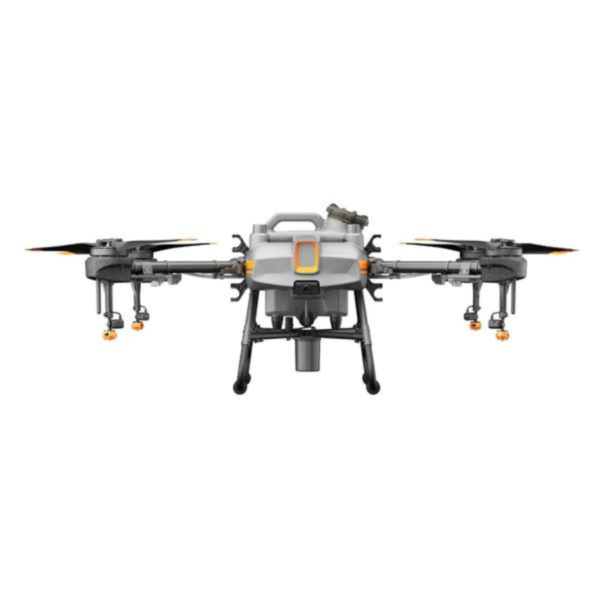

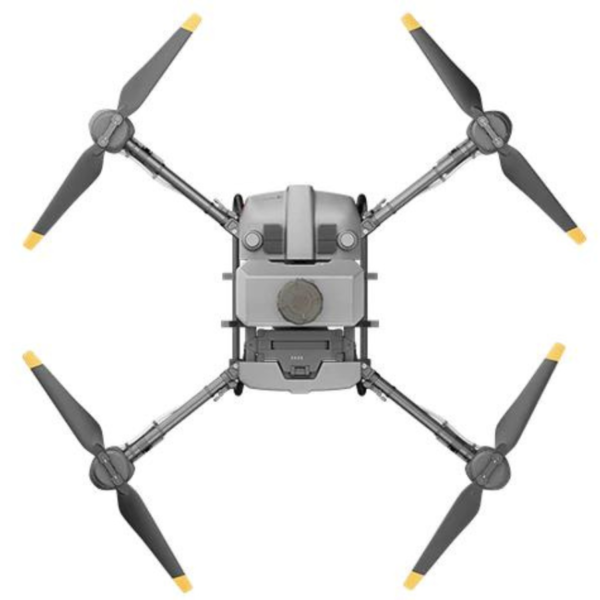

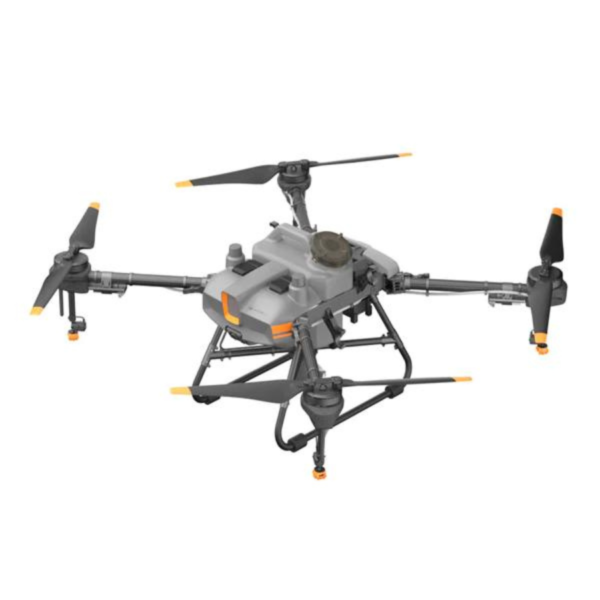

DJI Agras T10

Description

The DJI Agras T10 is a cutting-edge agricultural drone that combines innovative technology with practicality to revolutionize modern farming practices. Designed for precision agriculture, the T10 features a 10-liter spray tank, enabling efficient and targeted application of pesticides, fertilizers, and herbicides. This capacity is ideal for smaller fields or specialized crops, allowing farmers to manage their resources effectively.

One of the standout features of the DJI Agras T10 is its high-performance nozzle system, which ensures a consistent and uniform distribution of liquids across the field. This precision minimizes chemical usage, reducing costs and environmental impact while maximizing crop health and yield. The DJI Agras T10 drone can be equipped with various nozzle types, depending on the specific needs of the crops being treated.

The T10 is powered by a sophisticated flight control system that incorporates GPS and advanced sensors, providing exceptional stability and control during flight. It features intelligent flight modes, including terrain following, which allows the drone to adapt to changes in elevation and navigate uneven landscapes effortlessly. This capability ensures that spraying is accurate, even in challenging topographies, resulting in more effective treatments.

Real-time data collection is another key aspect of the DJI Agras T10. Equipped with a high-definition camera and additional sensors, the drone can capture detailed imagery and data analytics about crop health and field conditions. This information is invaluable for farmers, enabling them to make informed decisions regarding irrigation, fertilization, and pest management, ultimately leading to improved crop performance.

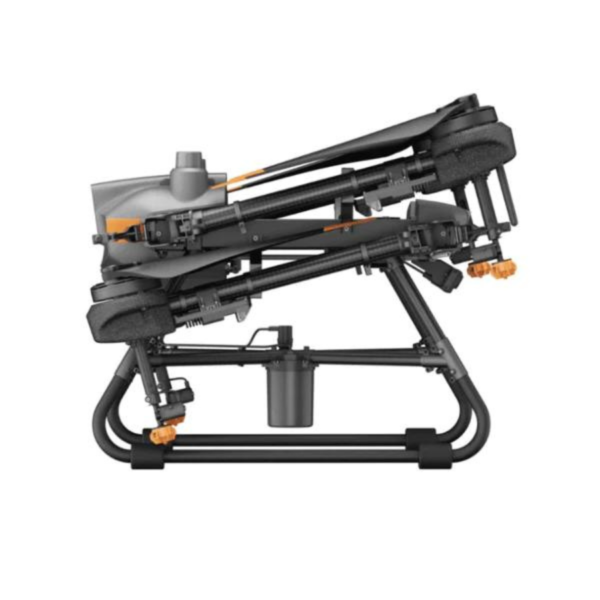

Portability is also a significant advantage of the DJI Agras T10. Its lightweight design and foldable arms make it easy to transport between locations, allowing farmers to quickly deploy the drone as needed. Additionally, the user-friendly interface and intuitive controls make it accessible for operators of all skill levels, streamlining the integration of drone technology into everyday farming operations.

In summary, the DJI Agras T10 is not merely a spraying tool; it is a comprehensive solution that empowers farmers to enhance productivity, reduce environmental impact, and increase overall yield. With its advanced features and capabilities, the T10 represents the future of precision farming, making it an essential asset for modern agricultural practices.

Specifications

Features

Hourly operation efficiency

15 acres

High-precision radar

√ Spherical Omnidirectional Radar System

Remote control planning precision

√ (RTK/GNSS)

Removing air from pipes

√ One button Air Discharge

3D operation planning of the AI engine

√

High-precision flowmeter

√ (Dual-channel electromagnetic flowmeter with an error of ±2%)

Level gauge

Single-point level gauge

Maximum spray flow

1.8 L/min (with standard XR11001VS nozzle) 2.4 L/min (with optional XR110015VS nozzle）

Pesticide tank installation method

Quick plugging pesticide tank

Battery installation method

Quick plug-and-play battery

One remote control for multiple drones

√ (one remote control for three drones)

D-RTK technology

√

Up-looking radar module

√

Flight dotting function

√

Smart cruising/return function

√

Intelligent supply-point prediction

x

Coordinated turn function

√

Forward-looking FPV

√

Backward-looking FPV

√

Branch targeting technology

x

Drone parameters

Total weight (without batteries)

13 kg

Rated take-off weight

24.8 kg (near sea level)

Hovering precision (with good GNSS signal)

With D-RTK enabled:
±10 cm (horizontal) and ±10 cm (vertical)
With D-RTK disabled:
±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1 m）

RTK/GNSS frequency bands

RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5
GNSS: GPS L1, GLONASS F1, and Galileo E1

Maximum power consumption

3,700 W

Hovering power consumption

3,200 W

Hovering time

17 min (@9,500 mAh & takeoff weight of 16 kg)
9 min (@9,500 mAh & takeoff weight of 24.8 kg)

Maximum pitch angle

15°

Maximum operating flight speed

7 m/s

Maximum level flight speed

10 m/s (with good GNSS signals)

Maximum endurable wind speed

6 m/s

Max Take-off Altitude

4,500m
*Reduce the pesticide amount by 12% with each increase of 1,000 meters of altitude.

Recommended operating ambient humidity

< 93%

Recommended operating ambient temperature

0℃ to 45℃

Rack parameters

Maximum rotor distance

1,480 mm

Dimensions

1,958 mm × 1,833 mm × 553 mm (with arms and blades extended)
1,232 mm × 1,112 mm × 553 mm (with arms extended and blades folded)
600 mm × 665 mm × 580 mm (with arms folded)

Power system – Motor

Stator size

100×10 mm

KV value

84 rpm/V

Maximum pulling force

11.2 kg/rotor

Maximum power

2,500 W/rotor

Weight

527 g

Power system – Propellers

Diameter × pitch

33×9 inch

Weight (a single blade)

92 g

Power system – ESC

Maximum operating current (continuous)

32 A

Maximum operating voltage

60.9 V (14S LiPo)

FPV camera

FOV

Horizontal: 129°, vertical:82°

Resolution

1,280×720 15-30 fps

FPV spotlight

Maximum light intensity

13.2 lux @ 5-meter direct light

Spraying system – Operation tank

Operation tank volume

8 L at full load

Operating load

8 kg at full load

Spraying system – Nozzles

Sprayer model

XR11001VS (standard)
XR110015VS (optional)
XR11002VS (optional)

Number of sprayers

4

Maximum spray flow

XR11001VS: 1.8 L/min
XR110015VS: 2.4 L/min
XR11002VS:3 L/min

Diameter of atomized particle

XR11001VS : 130 – 250 μm
XR110015VS : 170 – 265 μm
XR11002VS: 190 – 300 μm
(depending on the actual operating environment, spraying flow and other factors)

Maximum effective spray width

3 – 5.5m (with 4 sprayers and a distance of 1.5 – 3 meters to crops)

Spraying system – Water pump

Water pump model

Diaphragm pump

Operating voltage

15 V

Maximum flow

1.5 L/min ×1

Spraying system – Flowmeter

Flow measurement range

0.25 – 20 L/min

Flow measurement error

< ±2%

Measurable liquid

Conductivity > 50 μS/cm. Typical liquid: Tap water, aqueous organic or inorganic pesticides, and the like

Omnidirectional obstacle avoidance radar

Model

RD2424R

Operating frequency

SRRC/NCC/FCC: 24.05 to 24.25 GHz
MIC/KCC/CE: 24.05 to 24.25 GHz

Operating power consumption

12 W

Equivalent isotropic radiated power (EIRP)

SRRC: < 13 dBm; NCC/MIC/KCC/CE/
FCC:< 20 dBm

Height hold and terrain following

Height measurement range: 1 – 30m
Height hold range: 1.5 – 15m
Maximum slope in mountain mode:35°

Obstacle avoidance system

Perceivable distance: 1.5 – 30m
FOV: 360° (horizontal), ±15° (vertical)
Conditions of use: The relative flight height of the drone is above 1.5m and the speed below 7 m/s
Safe distance: 2.5m (the distance between the tip of the blade and the obstacle after the drone is braked and hovering stably)
Obstacle avoidance direction: Horizontally omnidirectional obstacle avoidance

Protection class

IP67

Up-looking radar

Model

RD2414U

Operating frequency

SRRC/NCC/FCC: 24.05 to 24.25 GHz
MIC/KCC/CE:24.05 to 24.25 GHz

Overhead obstacle avoidance

Perceivable distance: 1.5 – 10m
FOV: 80°
Conditions of use: The drone flies for a relative distance over 1.5 m in the mode of take-off, landing and route climb mode
Safe distance: 2m (the distance between the obstacle and the highest point on the top of the drone)
Obstacle avoidance direction: Above the drone

Protection class

IP67

Equivalent isotropic radiated power (EIRP)

SRRC:< 13 dBm;NCC/MIC/KCC/CE/
FCC:< 20 dBm

Operating power consumption

4 W

Battery

Model

BAX501-9500mAh-51.8V

Weight

About 3.8 kg

Discharge rate

11.5C

Protection class

IP54 + board-level embedment protection

Capacity

9,500 mAh

Voltage

51.8 V

Remote control

Model

RM500-ENT

Operating frequency of OcuSync 2.0

2.4000 to 2.4835 GHz
5.725 to 5.850 GHz

Effective signal distance of OcuSync 2.0 (without interference and blockage)

SRRC: 5 km; MIC/KCC/CE: 4 km; FCC: 7 km (measured at the operating height of 2.5m)

EIRP of OcuSync 2.0

2.4 GHz
SRRC/CE/MIC/KCC: 18.5 dBm;
FCC: 29.5 dBm;
5.8 GHz
SRRC: 28.5 dBm;
FCC: 20.5 dBm
CE:12.5 dBm

Wi-Fi Protocols

Wi-Fi Direct, Wireless Display, and 802.11a/g/n/ac. 2 × 2 MIMO Wi-Fi is supported

Wi-Fi operating frequency

2.4000 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 ~ 5.850 GHz

Wi-Fi EIRP

2.4 GHz
SRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm;
5.2 GHz
SRRC/FCC/CE/MIC: 14 dBm; KCC: 10 dBm;
5.8 GHz
SRRC/FCC: 18 dBm; CE/KCC: 12 dBm;

Bluetooth protocol

Bluetooth 4.2

Bluetooth operating frequency

2.4000 to 2.4835 GHz

Bluetooth EIRP

SRRC/MIC/FCC/CE/KCC:6.5 dBm

Positioning

GPS + GLONASS

Display

5.5-inch screen with a resolution of 1,920×1,080 and brightness of 1,000 cd/m², and Android OS

Operating memory (RAM)

4GB LPDDR4

Storage space (ROM)

32 GB + scalable storage space, and a microSD card with the capacity up to 128 GB and transfer speed of UHS-I Speed Grade 3 is supported

HDMI

HDMI 1.4

Supported drones

T30 and T10 crop protection drones

Operating power consumption

18 W

Operating ambient temperature

-10℃ to 40℃

Storage ambient temperature

-30℃ to 60℃ (within 1 month)
-30℃ to 45℃ (1 to 3 months)
-30℃ to 35℃ (3 to 6 months)
-30℃ to 25℃ (more than 6 months)
(with the capacity of built-in batteries at 40 to 60%)

Charging ambient temperature

5℃ to 40℃

Built-in battery of remote control

Built-in battery

18650 lithium ion battery (5,000 mAh at 7.2V)

Battery life

2 hours

Charging method

Standard 12V/2A USB quick charger

Charging time

2.5 hours (with the standard 12V/2A USB quick charger and the remote control powered off)

Power supply current/voltage of remote control USB-A port

5 V / 1.5 A

External smart battery of remote control

Model

WB37-4,920mAh-7.6V

Battery type

2S LiPo

Capacity

4,920 mAh

Voltage

7.6 V

Capacity

37.39 Wh

Charging ambient temperature

5℃ to 40℃

Battery life

2 hours

External smart battery charging manager of remote control

Model

WCH2

Input voltage

17.3 – 26.2 V

Output voltage and current

8.7V and 6A

Operating ambient temperature

5℃ to 40℃

Power adapter of external smart battery charging manager

Model

A14-057N1A

Input voltage

100 to 240V and 50/60 Hz

Output voltage

17.4 V

Rated power

57 W

T-Series Spreading System 3.0 (8kg)

Weight of distribution system

3.1kg

Maximum opening area

44.6 cm²

Applicable materials

Dry solid particles with a diameter of 0.5 to 5 mm

Volume of distribution tank

12L

Maximum internal load of distribution tank

10kg

Protection class

IP67

Input voltage

Power: 60V
Control:15V

Maximum power

60V@250W
15V@50W

Recommended operating ambient temperature

0℃ to 40℃

Dimensions

405×245×375mm

Maximum rotation speed

1,300 RPM

T10 smart charging manager

Dimensions

300×280×230 mm

Total weight

8.1 kg

Input voltage

100-264 Vac

Output voltage

40-60 V

Rated power

3,600 W

Charging current

50 A

Charging time

7 to 10 min

Charging voltage precision

+/-0.1 V

Charging current precision

+/-1 A

Number of output channels

2

Protection functions

Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection

Charging ambient temperature

-20℃ to 45℃

Charging safety

AC wire protection, power wire protection, and charge connector protection
