Description
Product Overview:

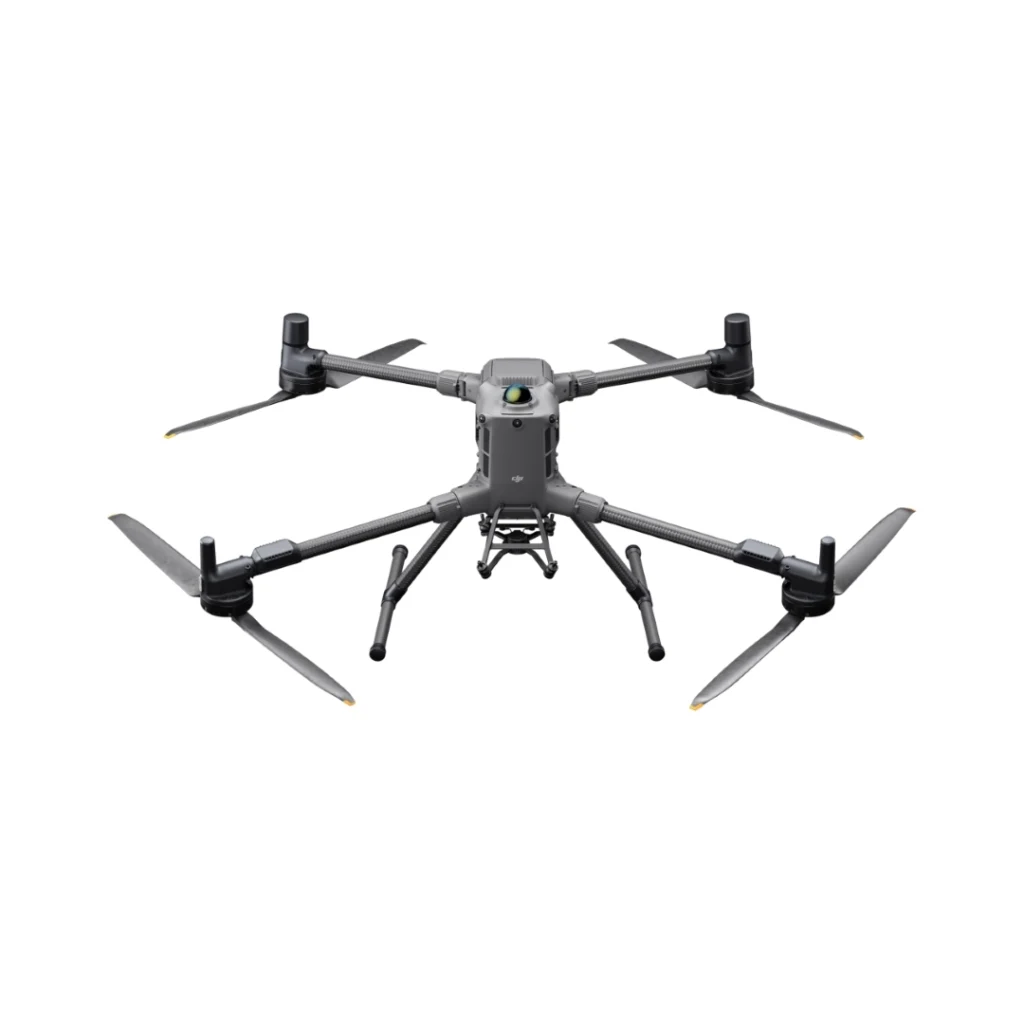

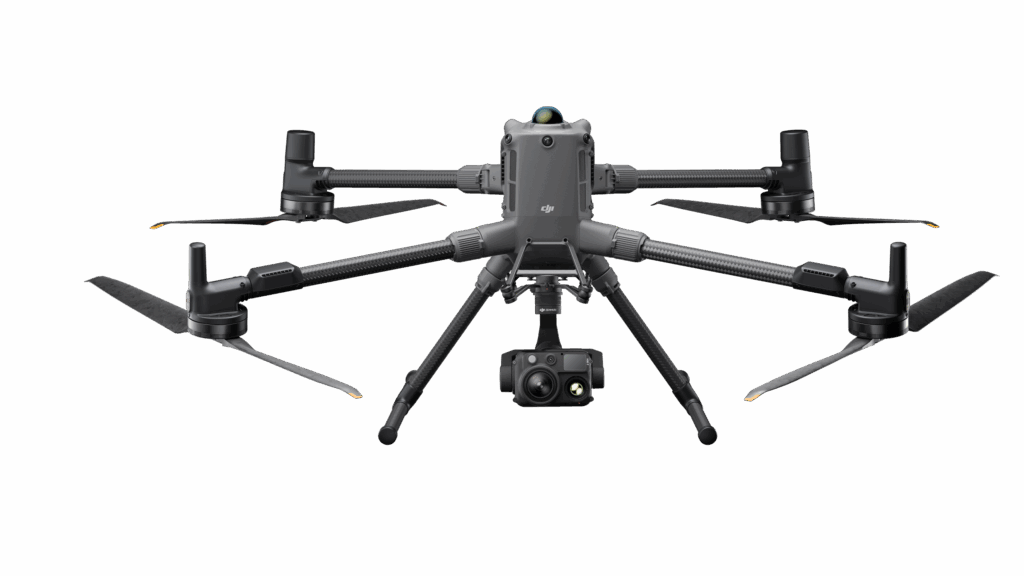

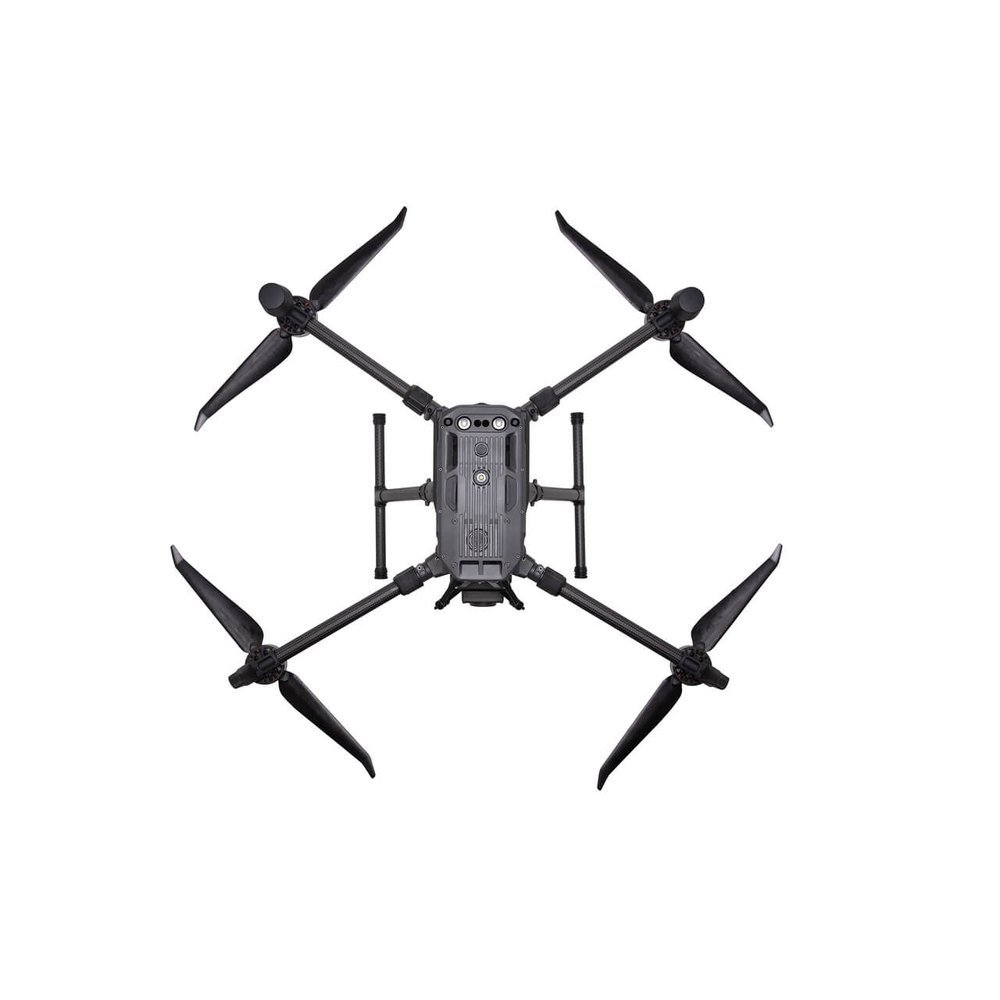

DJI Matrice 400 (DJI M400) Enterprise Drone is a heavy-duty enterprise aerial platform designed for demanding inspection, mapping, emergency response, surveying, and industrial missions. With up to 59 minutes of forward flight time, a 6 kg maximum payload, support for up to 7 payloads, advanced omnidirectional sensing, and DJI O4 transmission, the M400 provides the flexibility and reliability required for complex professional operations.
| Category | Details |
|---|---|
| Key Features | • Up to 59 minutes flight time in forward flight• Up to 53 minutes hovering time• Maximum payload capacity of 6 kg• Supports up to 7 payloads• Triple-gimbal support for multi-sensor operations• 360° omnidirectional obstacle sensing• Binocular vision, LiDAR, mmWave radar and fisheye sensors• DJI O4 transmission system• Up to 40 km transmission range under FCC conditions• Maximum flight distance of up to 49 km• IP55 protection rating• Operating temperature from -20°C to 50°C• TB100 hot-swappable battery system• BS100 charging station• Supports DJI Zenmuse and third-party payloads through SDK• Drone-to-drone relay capability |
| Technical Specifications | Maximum Takeoff Weight: 15.8 kgMaximum Payload: 6 kgMaximum Flight Time: 59 minutes forward flight / 53 minutes hoveringMaximum Flight Distance: 49 kmTransmission: DJI O4Maximum Transmission Range: Up to 40 km under FCC conditionsProtection Rating: IP55Operating Temperature: -20°C to 50°CBattery: TB100 hot-swappable battery systemCharging Station: BS100Payload Capacity: Up to 7 payloadsGimbal Support: Triple-gimbal configuration |
| Camera & Imaging | The DJI Matrice 400 is designed as a multi-payload enterprise platform rather than a drone with a fixed consumer camera. It can carry high-resolution cameras, LiDAR sensors, thermal imaging systems, and other specialized payloads. Its triple-gimbal capability enables multiple sensors to be deployed simultaneously, while support for DJI Zenmuse and compatible third-party payloads provides flexibility for inspection, mapping, surveying, and monitoring requirements. |
| Underwater Performance | The DJI Matrice 400 is not designed for underwater operation. Its IP55 protection helps protect the aircraft against dust and water exposure within specified operating conditions, but the drone should not be submerged or intentionally operated underwater. |
| Smart Features | • Smart Detection for intelligent identification and mission support• AR Projection for enhanced situational awareness• Terrain Follow for terrain-aware flight• Omnidirectional obstacle sensing• LiDAR-assisted sensing• Millimeter-wave radar detection• Binocular vision sensing• Drone-to-drone transmission relay• Dual-operator support through the RC Plus 2 controller• 4G cellular connectivity support• RTK support for high-precision positioning |
| Applications | • Power line and electrical infrastructure inspections• Oil & gas infrastructure monitoring• Search and rescue (SAR)• Emergency and disaster response• Construction site mapping• Surveying and mapping• Precision agriculture• Environmental monitoring• Industrial inspection• Thermal inspections• LiDAR-based surveying• Infrastructure monitoring• Large-scale asset management |
| What’s in the Box | • DJI Matrice 400 Aircraft• DJI RC Plus 2 Controller• TB100 Hot-Swappable Batteries• BS100 Charging Station• Required charging and connection accessories• Aircraft and controller accessories• Payload accessories depending on the selected configuration |
Why Choose This Product:
The DJI Matrice 400 is built for organizations that need a powerful, reliable, and highly configurable enterprise drone rather than a conventional aerial camera platform. Its 6 kg payload capacity, multi-payload support, triple-gimbal capability, 59-minute maximum flight time, advanced obstacle sensing, O4 transmission, and IP55-rated construction make it suitable for demanding industrial and public-safety missions. The TB100 hot-swappable battery system helps minimize downtime during long operations, while the BS100 charging station simplifies field battery management. Its compatibility with specialized DJI Zenmuse and third-party payloads also allows organizations to configure the platform around specific operational requirements.
FAQs
1. What is the DJI Matrice 400 designed for?
It is designed for demanding enterprise applications including infrastructure inspection, surveying, mapping, emergency response, search and rescue, agriculture, and environmental monitoring.
2. What is the maximum payload capacity?
The Matrice 400 supports a maximum payload of 6 kg and can support up to 7 payloads depending on the configuration.
3. How long can the Matrice 400 fly?
It provides up to 59 minutes of forward flight time and up to 53 minutes of hovering time under specified conditions.
4. What is the maximum takeoff weight?
The maximum takeoff weight is 15.8 kg.
5. Does the Matrice 400 support multiple cameras and sensors?
Yes. It supports triple-gimbal configurations and can carry multiple specialized payloads, including cameras, LiDAR, thermal sensors, and other compatible systems.
6. What obstacle-sensing technology does it use?
The M400 combines binocular vision, LiDAR, millimeter-wave radar, and fisheye sensors to provide omnidirectional obstacle sensing.
7. What transmission system does it use?
It uses the DJI O4 transmission system, with a stated maximum range of up to 40 km under FCC conditions.
8. Is the Matrice 400 weather resistant?
Yes. It has an IP55 protection rating and is designed to operate from -20°C to 50°C within its specified conditions.
9. What is the TB100 battery system?
The TB100 is a hot-swappable battery system designed to reduce operational downtime by allowing batteries to be replaced efficiently during field operations.
10. What is the BS100?
The BS100 is the associated charging station designed to streamline battery charging and field logistics.
11. Can third-party payloads be used?
Yes. The platform supports DJI Zenmuse payloads as well as compatible third-party payloads through its SDK ecosystem.
12. Is the Matrice 400 suitable for underwater operations?
No. Despite its IP55 protection, it is not an underwater drone and should never be submerged.
13. Who should choose the Matrice 400?
It is best suited to enterprise operators, infrastructure companies, emergency services, surveying teams, industrial organizations, and public-safety agencies that require high payload capacity, long endurance, advanced sensing, and multi-sensor flexibility.
