Description

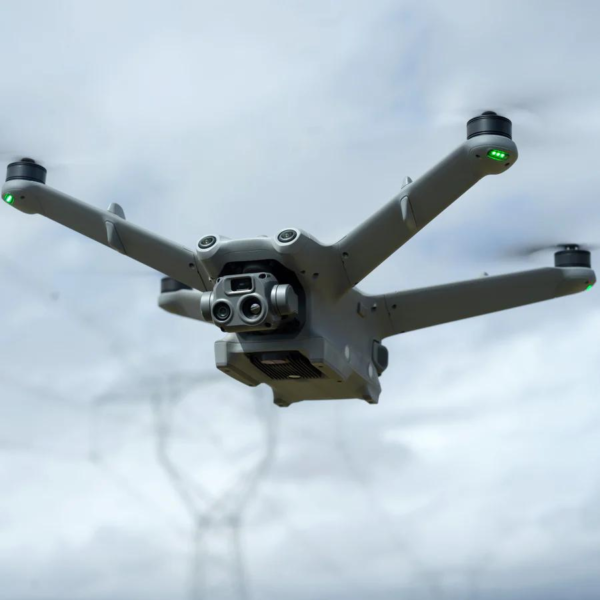

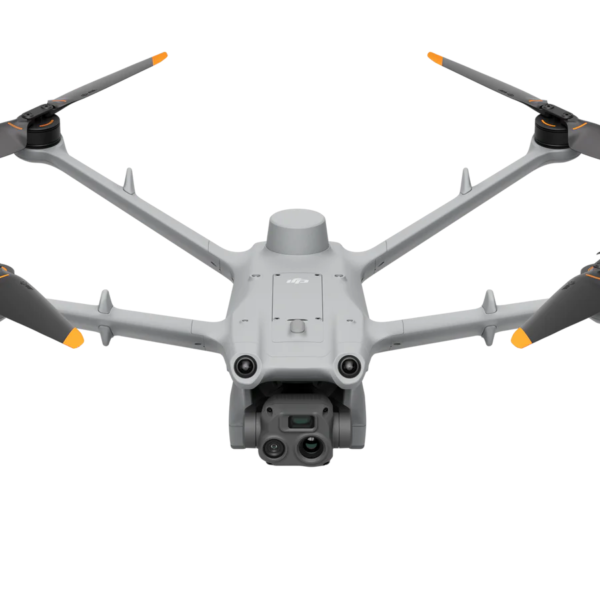

The DJI Matrice 3TD is a state-of-the-art commercial water resistant drone camera designed to deliver exceptional performance for professional aerial operations. Built to handle a wide range of industrial applications, including emergency services, infrastructure inspection, surveying, and more, the Matrice 3TD offers unparalleled precision, durability, and versatility. Its robust design ensures reliability in various weather conditions, making it an ideal choice for demanding tasks across multiple industries.
| Feature | Description |
|---|---|

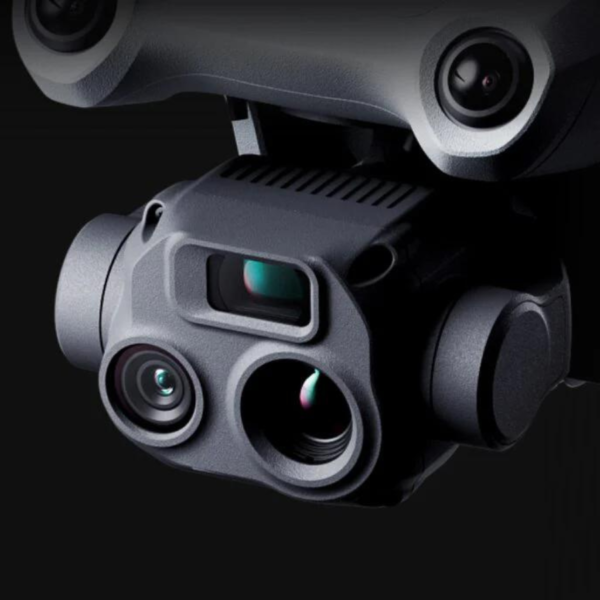

| Thermal and RGB Dual Sensor Camera | Equipped with both thermal and RGB sensors for simultaneous thermal and visual imaging, ideal for search and rescue, firefighting, and inspection missions. The thermal camera identifies heat signatures, while the RGB camera provides high-definition visual data. This dual imaging improves situational awareness and decision-making. |
| Advanced RTK Navigation for Precision | Incorporates Real-Time Kinematic (RTK) technology, ensuring centimeter-level positioning accuracy, which is crucial for mapping, detailed inspections, and 3D modeling. RTK provides reliable performance even in GPS-denied areas. |
| Extended Flight Time and Range | Offers a flight time of up to 55 minutes, reducing the need for frequent battery swaps. The drone’s enhanced transmission system provides a range of up to 15 km (9.3 miles), ensuring stable communication over vast distances. |
| Durability and Weather Resistance | Built with an IP45-rated body, it is dust and water-resistant, designed to perform in extreme weather conditions with a temperature range of -4°F to 122°F (-20°C to 50°C). |
| Six-Directional Obstacle Avoidance | Equipped with six-directional sensors (up, down, forward, backward, left, right), offering 360-degree obstacle detection for safer navigation, especially in urban and complex environments. |
| Modular Payload Compatibility | Supports various payloads, including LiDAR and specialized cameras for surveying, 3D mapping, and environmental monitoring. The modular design allows for easy switching of payloads based on mission requirements. |
| AI-Powered Smart Features | Features automated flight path planning, object recognition, and tracking capabilities. These AI features enhance operational efficiency and data collection for tasks like inspections and wildlife monitoring. |
| Dual Operator Mode for Collaborative Missions | Allows two operators to control the drone—one focusing on flight while the other handles the camera and payload, ensuring precision in high-stakes environments like inspections and search and rescue missions. |
| FlightHub and Data Management | Compatible with DJI FlightHub software for managing flight missions, analyzing real-time data, and sharing imagery. FlightHub streamlines data analysis and decision-making during operations. |
| Powerful Battery System with Quick-Swap Capabilities | Utilizes DJI’s Intelligent Flight Battery system for optimal power management. Quick battery swaps minimize downtime, and the Intelligent Battery Station ensures fast recharges, improving operational efficiency. |
| Specification | Details |
|---|---|
| Weight | 1410 g (Includes battery, propellers, and microSD card, excluding third-party payloads. Actual weight may vary based on materials and conditions) |
| Max Takeoff Weight | 1610 g |
| Dimensions | 335×398×153 mm (L×W×H, without propellers) |
| Wheelbase | Diagonal Wheelbase: 463.2 mm Left-Right Wheelbase: 359.9 mm Front-Rear Wheelbase: 291.4 mm |
| Max Ascent Speed | 6 m/s (Normal Mode) 8 m/s (Sport Mode) |
| Max Descent Speed | 6 m/s (both Normal and Sport Modes) |
| Max Horizontal Speed (at sea level, no wind) | Normal Mode (with Obstacle Sensing Enabled): 15 m/s forward, 12 m/s backward, 10 m/s sideways Sport Mode: 21 m/s forward, 18 m/s backward, 16 m/s sideways |
| Max Wind Speed Resistance | 12 m/s during operation 8 m/s during takeoff/landing |
| Max Takeoff Altitude | 4000 m |
| Max Flight Time | 50 minutes (controlled environment, may vary) |
| Max Hovering Time | 40 minutes (windless, 20 meters above sea level) |
| Max Operating Radius | 10 km (specific conditions) |
| Max Flight Distance | 43 km (dependent on conditions) |
| Max Pitch Angle | 25° (Normal and Sport Modes) |
| Max Angular Velocity | 250°/s |
| Global Navigation Satellite System | Supports GPS, Galileo, BeiDou, GLONASS (GLONASS with RTK module) |
| Hovering Accuracy Range | Vertical: ±0.1 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK) Horizontal: ±0.3 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK) |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Ingress Protection Rating | IP54 |
| Motor Model | 2607 |
| Propeller Model | 1149 (foldable, non-quick release) |
| RTK Module and Beacon | Integrated on the aircraft |
| Aircraft – Wide-Angle Camera | Image Sensor: Matrice 3D: 4/3 CMOS, 20 MP Matrice 3TD: 1/1.32-inch CMOS, 48 MP Lens: Matrice 3D: 84° FOV, 24 mm format equivalent, f/2.8-f/11 aperture Matrice 3TD: 82° FOV, 24 mm format equivalent, f/1.7 aperture Lens Defogging: Supported on both models |
| ISO Range | Matrice 3D: 100-6400 Matrice 3TD: 100-25600 |
| Shutter Speed | Matrice 3D: Electronic 8-1/8000 s, Mechanical 8-1/2000 s Matrice 3TD: Electronic 8-1/8000 s |
| Max Image Size | Matrice 3D: 5280×3956 Matrice 3TD: 8064×6048 |
| Still Photography Modes | Matrice 3D: Single (20 MP), Timed, Smart Low-Light, Panorama Matrice 3TD: Single (12 MP, 48 MP), Timed, Smart Low-Light, Panorama |
| Video Resolution and Bitrate | Matrice 3D: 4K at 130 Mbps, FHD at 70 Mbps Matrice 3TD: 4K at 85 Mbps, FHD at 30 Mbps |
| Photo Format | JPEG |
| Video Format | MP4 (H.264) |
| Aircraft – Tele Camera | Image Sensor: 1/2-inch CMOS, 12 MP Lens: 15° FOV, 162 mm format equivalent, f/4.4 aperture Max Image Size: 4000×3000 Digital Zoom: 8x (56x hybrid zoom) |
| Aircraft – Infrared Camera (Matrice 3TD) | Thermal Imager: Uncooled VOx Microbolometer, 12 μm pixel pitch Temperature Measurement Range: -20° to 150° C (High Gain Mode), 0° to 500° C (Low Gain Mode) Digital Zoom: 28x Infrared Wavelength: 8-14 μm |
| Aircraft – Gimbal | Stabilization: 3-axis mechanical gimbal Controllable Range (Tilt): -90° to +35° Max Control Speed (Tilt): 100°/s |
| Aircraft – Sensing and Obstacle Detection | Sensing Type: Six-directional obstacle sensing, 10° blind spot in the upper rear area Sensing Range: Forward (0.5-21 m), Backward (0.5-23 m), Lateral (0.5-15 m), Upward (0.5-21 m), Downward (0.5-14 m) |
| Aircraft – Video Transmission | Transmission System: DJI O3 Enterprise Transmission Operating Frequency: 2.4 GHz, 5.1 GHz, 5.8 GHz (depending on local regulations) Max Transmission Distance: Up to 15 km (FCC), 8 km (CE/SRRC/MIC) Max Download Speed: Up to 15 MB/s (with DJI RC Pro Enterprise) |
| Aircraft – Battery | Capacity: 7811 mAh, 14.76 V, 115.2 Wh Max Charging Voltage: 17.0 V Cycle Count: 400 |
| Aircraft – Power Adapter | Input: 100-240 V (AC), 50/60 Hz, 2.5 A Output Power: Max output of 100 W |
Applications:
The Matrice 3TD is designed to excel in a variety of professional applications:
- Search and Rescue: The thermal imaging sensor is invaluable for detecting heat signatures of missing persons or animals in difficult terrain or low-visibility conditions.
- Firefighting: By identifying hotspots and mapping fire boundaries, the drone assists in planning firefighting strategies and ensuring the safety of personnel on the ground.
- Infrastructure Inspection: Its high-resolution camera and thermal sensor are perfect for inspecting power lines, bridges, solar farms, and other critical infrastructure to detect anomalies or damage.
- Surveying and Mapping: With its precise RTK positioning and ability to carry LiDAR or RGB cameras, the Matrice 3TD is ideal for creating detailed 3D maps of construction sites, natural landscapes, and urban environments.
Conclusion:
The DJI Matrice 3TD is a highly versatile, durable, and intelligent water resistant drone designed for professionals who demand accurate, reliable, and real-time data collection in challenging environments. Whether you’re engaged in search and rescue operations, inspecting critical infrastructure, or performing high-precision surveying, the Matrice 3TD equips you with the necessary tools and technology to complete tasks efficiently and safely. Featuring a powerful dual-sensor camera, advanced RTK navigation, and a rugged design, this water resistant drone is the ideal solution for demanding aerial operations.
