Description
The DJI M30 Dock is a cutting-edge, automated docking station designed specifically for the DJI M30 drone camera series. It enhances drone operations by facilitating rapid deployment and efficient management, allowing for autonomous charging and data synchronization. Engineered for continuous, round-the-clock flight operations with minimal human intervention, the dock is ideal for critical applications such as emergency response, surveillance, and industrial inspections. Integrating the DJI M30 drone camera ensures high-quality aerial footage, making it a reliable choice for industries requiring precision and real-time data.
One of its standout features is the automated charging system, which ensures that drones are always ready for deployment, significantly reducing downtime and increasing operational efficiency. Additionally, the dock allows the M30 drone to be launched autonomously within minutes of receiving a command, making it crucial for time-sensitive missions.
Built to withstand various environmental conditions with an IP55 rating, the M30 Dock ensures reliable performance in challenging scenarios, making it suitable for outdoor use year-round. It also facilitates automatic data synchronization and uploading, ensuring that all flight data is consistently backed up and easily accessible for analysis, which streamlines workflows and enhances decision-making processes.
Moreover, the dock provides a secure storage solution for the drone, protecting it from theft and damage when not in use. This security feature is essential for maintaining the integrity and readiness of the drone system, particularly in remote or unmonitored locations. Overall, the DJI M30 Dock significantly enhances the capabilities of the M30 series, providing a reliable and effective platform for advanced unmanned aerial operations.
| Specification | Details |
|---|---|
| Product Name | DJI M30 Dock |
| Total Weight | 105 kg (not including aircraft weight) |

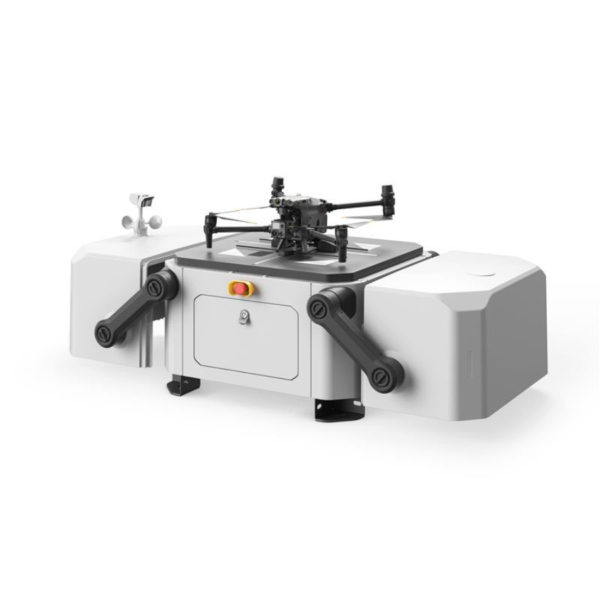

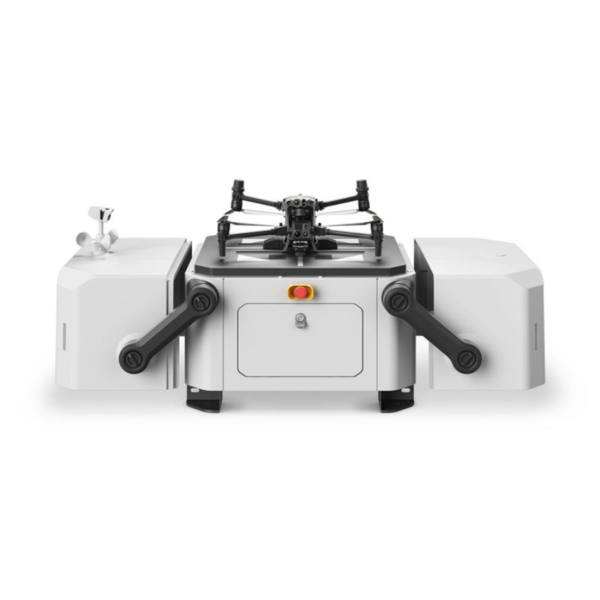

| Dock Cover Opened Dimensions | 1675×885×735 mm (L×W×H) |

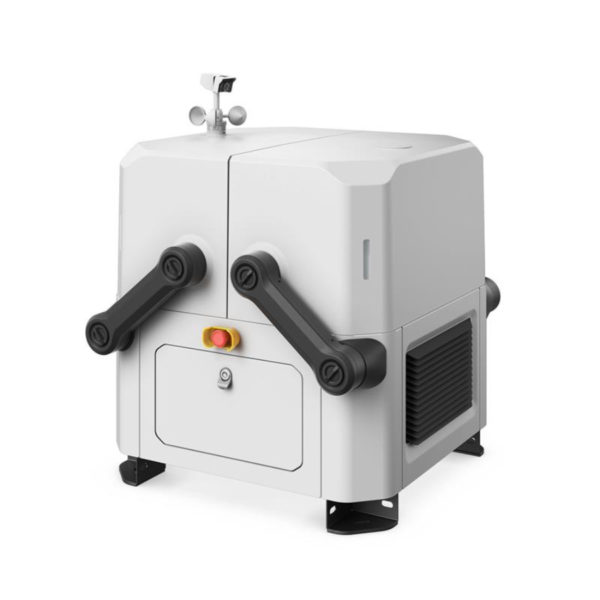

| Dock Cover Closed Dimensions | 800×885×1065 mm (L×W×H) |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Max Input Power | 1,500 W |
| Operating Temperature | -35 to 50° C (-31 to 122° F) |
| Ingress Protection Rating | IP55 |
| Number of Drones Accommodated | 1 |
| Max Allowable Landing Wind Speed | 12 m/s |
| Max Operating Altitude | 4,000 m |
| Max Operating Radius | 7,000 m |
| RTK Base Station Receiving Frequency | GPS: L1 C/A, L2 BeiDou2: B1l, B2l, B3l BeiDou3: B1l, B3l GLONASS: L1, L2 Galileo: E1, E5B |
| RTK Base Station Positioning Accuracy | Horizontal: 1 cm + 1 ppm (RMS) Vertical: 2 cm + 1 ppm (RMS) |
| Charging Performance Output Voltage | 18 to 26.1 V |
| Charging Time | 25 minutes (from 10% to 90% at 25°C/77°F) |
| Video Transmission System | O3 Enterprise |
| Video Transmission Operating Frequency | 2.4000-2.4835 GHz 5.725-5.850 GHz |
| Video Transmission Antennas | 4 antennas, 2T4R |
| Video Transmission Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <23 dBm (SRRC) |
| Air Conditioning System Operating Voltage | 48 VDC |
| Air Conditioning Type | TEC Air Conditioning |
| Backup Battery Capacity | 12 Ah |
| Backup Battery Output Voltage | 24 V |
| Backup Battery Type | Lead-acid Battery |
| Backup Battery Life | >5 hours |
| Network Access Ethernet | 10/100/1000 Mbps Adaptive Ethernet port |
| Sensors Supported | Wind Speed Sensor, Rainfall Sensor, Ambient Temperature Sensor, Water Immersion Sensor, In-cabin Temperature Sensor, In-cabin Humidity Sensor, Vibration Sensor |
| Integrated Security Camera Resolution | 1920×1080 |
| Integrated Security Camera FOV | 180° |
| Auxiliary Light | Supported (Auxiliary White Light) |
| Lightning Protection | AC Power Port: 40 kA (8/20μs waveform), meets EN/IEC 61643-11 TYPE 2 protection level requirements Ethernet Port: 1.5 kA (8/20μs waveform), meets EN/IEC 61643-21 CATEGORY C protection level requirements |
| Supported Software | Applications: DJI Pilot 2 (connects to DJI Dock via DJI RC Plus for configuration and commissioning) Cloud Platform: DJI FlightHub 2 3rd Party Platforms: Supported through DJI Cloud API |
