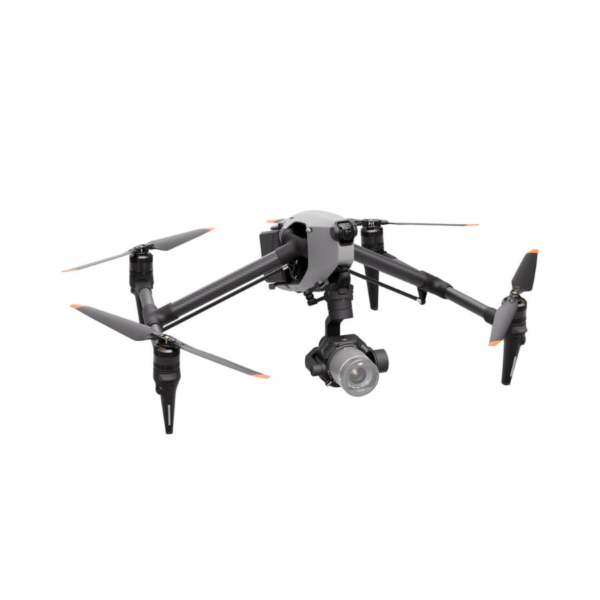

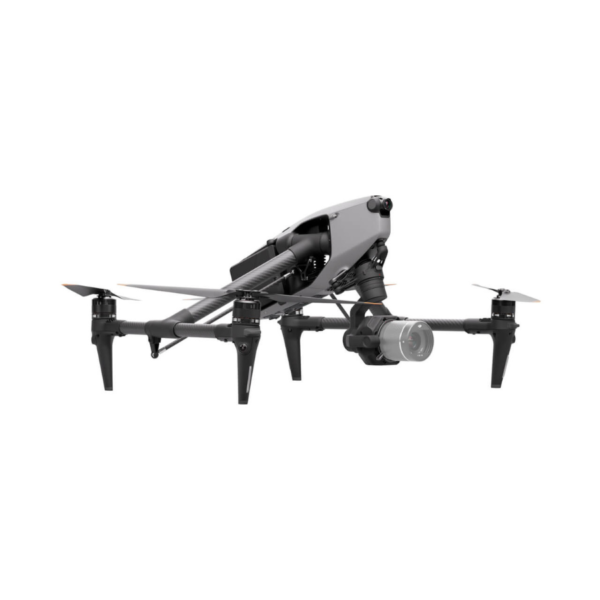

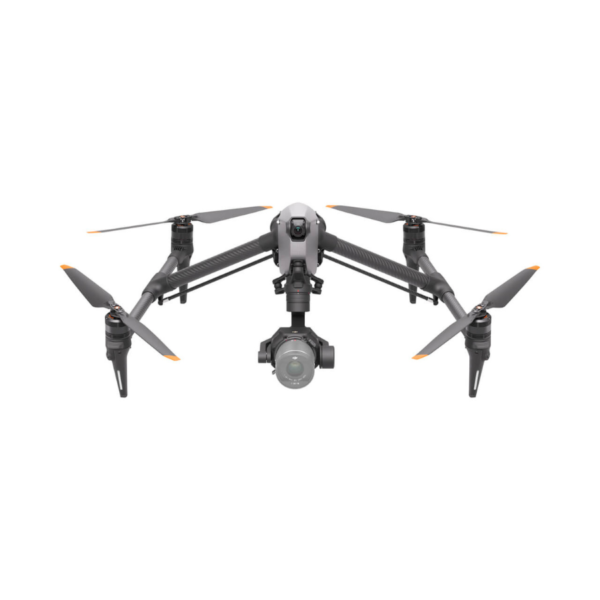

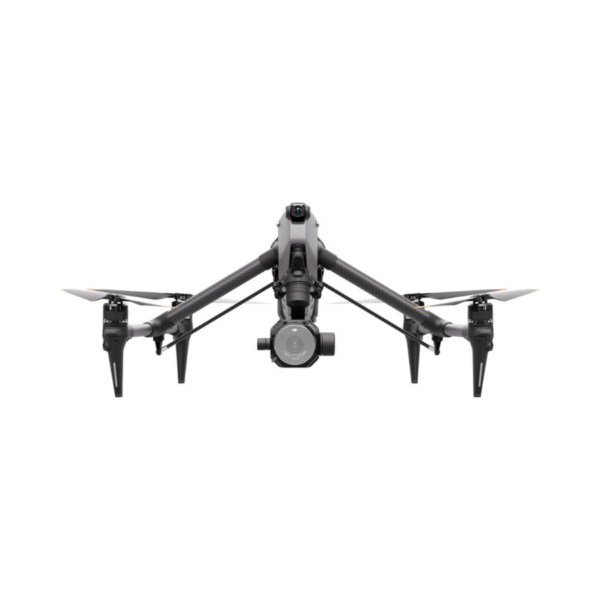

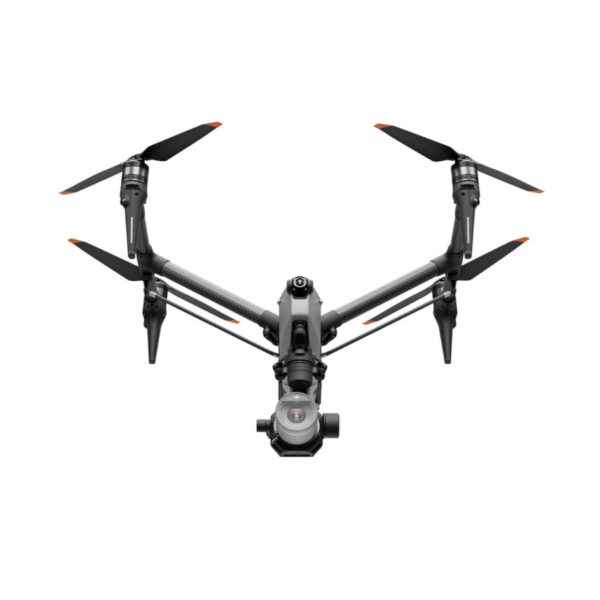

DJI Inspire 3 Drone

Description

The DJI Inspire 3 represents a major leap in aerial cinematography, featuring seamless integration with DJI’s latest remote control, the RC Plus. This innovative drone enhances operational flexibility through its dual-control mode, enabling collaborative operation: one person can manage the intricate movements and settings of the cinema camera, while another focuses on navigating the drone using a dedicated front-facing first-person view (FPV) camera.

The FPV system features an impressive 161-degree ultra-wide lens paired with a 1/1.8-inch sensor optimized for night vision, ensuring clear visuals in low-light situations. With a minimal 90ms transmission delay, live footage is displayed sharply on the RC Plus’s bright 7-inch screen, which boasts a luminosity of 1,200 nits. This synergy between the drone and controller enhances the precision and quality of aerial cinematography, significantly improving usability for filmmakers and pushing the boundaries of aerial videography.

Key Features

6K/8K Video Resolution: Delivers ultra-high-definition footage, ideal for professional filmmakers seeking maximum detail and clarity in aerial shots.

Large CMOS Sensor: Ensures superior image quality with exceptional detail and dynamic range, particularly beneficial for night shoots or dusk landscapes.

Interchangeable Lens System: Offers shooting flexibility, accommodating various styles from wide-angle landscapes to detailed close-ups with different focal lengths and apertures.

Advanced Image Processing: Supports RAW and ProRes formats, providing unmatched post-production flexibility for high-quality outputs in professional film and television.

Extended Flight Time: Enhanced battery technology prolongs flight durations, minimizing the need for frequent landings and battery swaps, thereby boosting productivity.

Increased Speed and Agility: Achieves high speeds for quick responses to control inputs, making it ideal for tracking fast-moving subjects.

Robust Wind Resistance: Delivers stable flight and smooth footage even in challenging weather, ensuring reliability in diverse environments.

Advanced Obstacle Sensing: Features a multi-directional obstacle avoidance system, enhancing safety by preventing collisions during complex maneuvers.

Precision Remote Controller: Equipped with customizable buttons and dials for nuanced flight and camera control, ensuring accurate shots.

HD Video Transmission: Provides a clear, lag-free live video feed to the controller, enabling precise framing and real-time decision-making.

Intelligent Flight Modes: Automates complex flight paths and camera movements, allowing solo operators to achieve intricate shots typically requiring a crew.

Power and Reliability: Intelligent Flight Batteries feature advanced power management and detailed status reporting, ensuring optimal performance during critical shooting moments.

Specifications

Aircraft Model: T740

Aircraft Weight: Approximately 3,995 g (includes gimbal camera, two batteries, lens, PROSSD, and propellers)

Maximum Takeoff Weight: Approximately 4,310 g

Hovering Accuracy:

• Vertical:
  • ±0.1 m (vision positioning)
  • ±0.5 m (GNSS positioning)
  • ±0.1 m (RTK positioning)
• Horizontal:
  • ±0.3 m (vision positioning)
  • ±0.5 m (GNSS positioning)
  • ±0.1 m (RTK positioning)

RTK Positioning Accuracy:

• Horizontal: 1 cm + 1 PPM
• Vertical: 1.5 cm + 1 PPM

Maximum Angular Velocity:

• Pitch: 200°/s
• Roll: 200°/s
• Yaw: 150°/s

Maximum Pitch Angle:

• N Mode: 35°
• S Mode: 40°
• A Mode: 35°
• T Mode: 20°
• Emergency Brake: 55°

Maximum Ascent Speed: 8 m/s
Tested under windless conditions at sea level with the gimbal camera and lens attached.

Maximum Descent Speed:

• Vertical: 8 m/s
• Tilt: 10 m/s
  Tested in windless conditions at sea level with the gimbal camera and lens attached.

Maximum Horizontal Speed: 94 kph
Measured in calm conditions at sea level with the gimbal camera and lens attached.

Maximum Service Ceiling:

• Standard Propellers: 3,800 m
• High-Altitude Propellers: 7,000 m
  Tested under mild wind conditions with the gimbal camera and lens attached.

Maximum Wind Resistance:

• Takeoff/Landing: 12 m/s
• In-flight: 14 m/s
  Measured at sea level with the gimbal camera and lens attached.

Maximum Hovering Time: Approximately 25 minutes
Tested in windless conditions at sea level with the gimbal camera and lens attached, landing gear raised, and recording 4K/24fps H.264 (S35) video.

Maximum Flight Time:

• Approx. 28 minutes (landing gear lowered)
• Approx. 26 minutes (landing gear raised)
  Measured in windless conditions at sea level while flying at a constant 36 kph with the gimbal camera and lens attached, recording 4K/24fps video.

Motor Model: DJI 3511s

Global Navigation Satellite System: Supports GPS, Galileo, and BeiDou

Propeller Model:

• Standard Propellers: DJI 1671
• High-Altitude Propellers: DJI 1676

Operating Temperature: -20°C to 40°C (-4°F to 104°F)

Diagonal Distance:

• Landing Gear Raised: 695 mm
• Landing Gear Lowered: 685 mm

Travel Mode Dimensions:
Height: 176 mm
Width: 709.8 mm
Length: 500.5 mm

Class:
C3 (EU)

Gimbal Camera Specifications:

Sensor:
35mm full-frame CMOS
Max Resolution:

• Photo: 8192×5456
• Video: 8192×4320

Supported Lenses:

• DL 18 mm F2.8 ASPH Lens
• DL 24 mm F2.8 LS ASPH Lens
• DL 35 mm F2.8 LS ASPH Lens
• DL 50 mm F2.8 LS ASPH Lens
• DL 75 mm F1.8 Lens

Photo Format:
JPEG, DNG

Video Format:
MOV, CinemaDNG

Exposure Modes:
P, A, S, M

Shutter Speed:
8-1/8000 s (electronic shutter)

ISO Range:

• Photo: ISO 100-25600
• Video: EI 200-6400

Anti-flicker Modes:
Auto, 50 Hz, 60 Hz, Off

Mechanical Range:

• Tilt: -128° to +110° (landing gear lowered), -148° to +90° (landing gear raised)
• Roll: -90° to +230°
• Pan: ±330°

Max Control Speed:

• Tilt: 120°/s (DJI RC Plus)
• Tilt: 432°/s (DJI Master Wheels)

Weight:
Approximately 516 g (without lens)

Video Transmission System:

Transmission System:
O3 Pro

Live View Quality:

• FPV Camera: Up to 1080p/60fps
• Gimbal Camera: Up to 4K/30fps

Maximum Transmission Distance:

• Single Control Mode:
  • FPV Camera: up to 15 km (FCC), 8 km (CE/SRRC/MIC)
  • Gimbal Camera: up to 13 km (1080p/60fps), 5 km (4K/30fps)
• Dual-Control Mode:
  • FPV Camera: up to 12 km (FCC), 6.4 km (CE/SRRC/MIC)
  • Gimbal Camera: up to 11.2 km (1080p/60fps), 4 km (4K/30fps)

Operating Frequencies:
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

Battery Information:

Model:
TB51 Intelligent Battery

Capacity:
4,280 mAh

Charging Time:

• Fast Mode: Approx. 35 minutes to 90%
• Standard Mode: Approx. 55 minutes to 100%

Memory Card:

Type:
DJI PROSSD 1TB

Remote Controller Model:

RM700B

Operating Time:
3.3 hours (built-in batteries), 6 hours (with external battery)

Operating Frequency:
2.4000-2.4835 GHz, 5.725-5.850 GHz

App:
DJI Pilot 2

FPV Camera FOV:
161°
Resolution:
1920×1080 @ 60fps
